LS620 Microscope
The LS620 easily records your photos, time-lapse series, and videos directly to your computer.
LS620 Microscope
Blue, Green, and Red Fluorescence,
Brightfield, and Optional Phase Contrast
Use the LS620 to visualize and capture high resolution fluorescence images comparable to those from traditional, high-cost microscopes. LS Microscopes utilize LED light sources, Semrock filters, advanced optical engineering, and CMOS sensors to provide near diffraction-limited (theoretical maximum) resolution. Powered only by its USB connection, the LS620 easily records your photos, time-lapse series, and live videos directly to your computer. And its compact size enables working in challenging locations, including inside incubators, biological safety cabinets, and environmental control workstations. The LS620 provides blue, green and red fluorescence imaging at low cost for a wide variety of applications!
4-Channel LS620 Microscope
Features and Benefits
BPAE cells stained to show nuclei (blue), alpha-tubulin (green), and F-actin (red) on an LS 620; LifeTech FluoCells slide #2; 40x Olympus objective.
- Fully functioning microscope empowers users to visualize cells from slides, microplates, flasks, or dishes

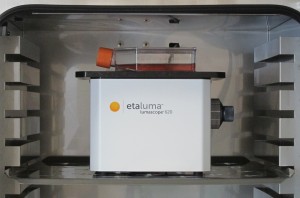

- Versatile and compact design permits use inside cell culture incubators, tissue culture hoods, and environmental workstations
- Robust software enables time-lapse studies over seconds, minutes, hours, or days
- Modern LED and optical design lowers cost and eliminates cumbersome, difficult to maintain laser-driven and arc lamp systems
- Power and control via USB connection facilitates rapid set up and easy use
- Custom optimized filter set detects a range of blue, green and red fluorophores, including BFP, DAPI, FITC, Fluo-4, GFP, and mCherry
- Advanced optics provide excellent resolution in ambient lighting conditions
- Objective compatibility with standard lenses allows use of your own objectives
- Optional Phase Contrast Accessory enhances visualization of unstained samples
The LS620 is the most powerful digital microscope offered anywhere at this price. Like the earlier LS600, it utilizes a Semrock Brightline® Pinkel filter set optimized for 405 nm, 488 nm, and 594 nm LED light sources. The 5-filter set is comprised of 3 exciting filters, 1 triple-band emitting filter, and 1 beam-splitting filter. The LS620 also contains the same CMOS sensor as the LS600 that is larger than the sensor used in LS520 and LS420.
Excitation and Emission Profiles of LS620 filters
| LS620 Microscope Specifications | |
|---|---|
| Optics | Blue, green & red fluorescence; brightfield |
| Phase Contrast | Phase contrast optional |
| Objective Options | 2.5x, 4x, 10x, 20x, 40x, 60x, and 100x(oil) magnification |
| Objective Compatibilities | RMS-threaded, infinity corrected, 45 mm parfocal distance |
| Fluorescence Filters | Channel 1: Excitation 370-410 nm; Emission 429-462 nm Channel 2: Excitation 473-491 nm; Emission 502-561 nm Channel 3: Excitation 580-598 nm; Emission 612-680 nm |
| Camera | High Sensitivity Monochrome CMOS Sensor; C-mount |
| Image Formats | JPG, BMP, TIF, GIF, or PNG |
| Image Size | 100 x 100 to 1900 x 1900 pixels |
| Field of View | 0.9 x 0.9 mm with 20x objective |
| Video Rates | Up to 10 frames/second (fps); with reduced frame size, up to 30 fps |
| Manual XY Stage (optional) | Sized for SBS footprint; other labware requires Labware Holders |
| Labware Holders (optional) | Hold slides, 3 sizes Petri dishes, flasks; custom available |
| Computer Requirements | Windows 7, 8, 8.1, 10 |
| Automation Friendly | SDK available |
| Power Requirements | USB |
| Dimensions | 24 cm W x 14 cm D x 16.5 cm H (9.4 in W x 5.5 in D x 6.5 in H) |
| Weight | 3.2 kg (7.1 lb) (without accessories) |
| Operating Conditions | 0°C - 42°C, 5% - 95% RH non-condensing |
| Warranty | 1 year parts & labor |
What’s included with the LS620
The LS620 comes with the new black anodized deck with tab off the back for mounting the Phase Contrast Accessory (see Products/Phase Contrast & Other Accessories) and accessible deck feature. The accessible deck includes a removable insert that when removed provides easy access to the objective for quick switching to another one. Also, on the underside of the right end of the deck are 2 tapped holes for mounting the optional Manual XY Stage (see Optional Accessories below).
The LS620 also comes with a USB power/communication cable for connecting to a computer, fluorescence shroud, and external power supply/cord with country-appropriate plug for situations requiring brighter lighting (typically not needed).
The LS620 is controlled by Lumaview software that can be downloaded at no charge from the Etaluma website (see Resources/Downloads).
Objectives are sold separately (see Products/Objectives).
| LS620/LS600 Optional Accessories | |
|---|---|
| Phase Contrast Accessory LS620, LS520, LS420 (Olympus pre-centered) | Enhances visualization of transparent specimens, including unstained samples |
| Manual XY Stage for LS620, LS600, LS520, LS420 | Provides ability to move SBS-dimensioned labware and Labware Holders holding other labware (see below) |
| Labware Holder for 35 mm Petri dishes | Fits inside Holder for 60 mm Petri dish or Terasaki plate to achieve SBS footprint |
| Labware Holder for 60 mm Petri dishes & Terasaki plates | SBS outer dimensions |
| Labware Holder for microscope slides and 50 mm Petri dishes | SBS outer dimensions |
| Labware Holder for 4 microscope slides in parallel | SBS outer dimensions |
| Lumaquant | Image analysis software |
| Image-Pro Premier | Image analysis software |
